Blank Sensus screen? Lines across the display? A touchscreen that has stopped listening? We fit a new screen, code it to your car and test every menu at your door — in one visit. No posting the unit away, no days without a radio, no dealer's replacement bill. 7-inch Sensus and Sensus Connect, the 9-inch touchscreen and the pop-up sat-nav in older Volvos all covered. XC60 · XC90 · XC40 · V40 · S60 · V60 · V70 · XC70 · S80 · S90 · V90 · C30 · C70 · S40 · V50
Volvo has fitted several generations of centre screen since 2003, and each has its own way of failing. These are the calls we get — and what we do about them.
The screen is dead but the sound plays, the climate controls respond and the buttons still click. On the 7-inch Sensus cars that usually points at the display itself, its backlight or its connections rather than the electronics behind it — the best kind of fault to have.
New screen, same visitNo screen, no sound, no phone, parking sensors silent, and the dash showing Driver alert service required or BLIS service required. A failed Infotainment Control Module (ICM) is the usual cause on 2011–2018 cars, but a tired battery or a break in the fibre-optic ring can look identical. We test before we touch anything.
Diagnosed on-siteVertical lines, a split image, a picture that flickers or washes out, a backlight that has given up, a screen that turns pink on a cold morning. Classic LCD and ribbon-cable faults on both the 7-inch and the 9-inch screens — and exactly what we fixed on the XC60 below.
New screen, same visitThe 9-inch portrait screen in the XC90, XC60, XC40, S90/V90 and S60/V60 senses your finger with an infrared frame rather than a touch layer in the glass. When it stops responding or fires off phantom presses, the cause can be software, contamination around the bezel or the frame electronics — different fixes, so it pays to diagnose rather than swap the screen on a guess.
Diagnosed on-siteA system that reboots every few minutes, freezes on one radio station or sits on the Volvo logo. Often the head unit's software rather than the screen, and Volvo's own technical bulletins tell dealers not to replace hardware for it. We find out which it is before anyone spends money on parts.
Software firstA motorised RTI screen that will not come up, stays up, or comes up blank — on anything from a 2003 XC90 to a 2011 S80, V70 or XC70. XC90, S40/V50, C30 and C70 centre displays with dead pixels, lines or blackouts. Pre-Sensus displays that go pink in the cold. Older radio displays gone dim or unreadable.
Mechanism repairedWe don't guess and replace. A Volvo screen fault can live in the display, the module behind it, the head unit's software, the fibre-optic network or the battery — and the fix for each is different.
Manufacturer-level diagnostics across the whole car, not just the infotainment: fault codes in the ICM or head unit, battery and charging health, the MOST fibre-optic ring and every module on it. Plenty of "dead screens" turn out to be a tired battery or a software lock-up, and we would rather tell you that than sell you a repair.
For the 7-inch Sensus Connect cars we carry replacement control modules already fitted with brand-new LCD panels. We fit one, code it to your car with dealer-level software so it is recognised and fully unlocked, and take the faulty unit away with us. Where the module's own electronics have failed rather than the display, a tested replacement module coded to the car is the same visit's work.
Screen, touch, sound, phone, navigation, parking sensors and camera where fitted. Warning messages cleared, modules synced, and a full switch-off-and-restart cycle so you are not left with a screen that works until the car next goes to sleep.
The same screen hardware runs across whole families of Volvos, so if your model is here we have almost certainly seen its fault before. Years are UK model years and can overlap at a changeover — send us your reg if you are not sure which screen you have.
The fixed 7-inch colour display at the top of the centre stack, with the dial-and-button panel beneath it — known to Volvo as the ICM. Some V40s and early Sensus cars have the 5-inch version of the same unit. Sensus Connect arrived for the 2015 model year on the XC60, S60 and V60; the cluster of faults is the same either way.
The tablet-style screen in the current-shape cars, first with Volvo's Sensus software and, from 2022–2023 depending on model, with Google built-in. The screen hardware is closely related across the whole range. A tougher, scratch-resistant screen arrived for the 2017 XC90; the facelifted XC60 and XC90 and the EX30 and EX90 carry larger 11.2-inch to 14.5-inch screens — newer cars, mostly still within Volvo's warranty, but if yours is not, ask: the diagnosis is the same.
Before Sensus, the centre stack had a smaller information display and, where navigation was specified, a motorised RTI screen that rises out of the top of the dash. The pop-up mechanism, its gears and the navigation unit that drives it are common to every car here. Pre-Sensus S80, V70, XC70 and XC60 displays go blank, intermittent or pink in the cold; XC90, S40, V50, C30 and C70 displays lose pixels, grow lines or black out; the older S60, V70 and S80 radio displays fade or scramble.
Don't see your model? Give us a call — send the registration over and we'll confirm which screen you have and what it needs. Older Volvo with a dead instrument cluster as well? See cluster repair.

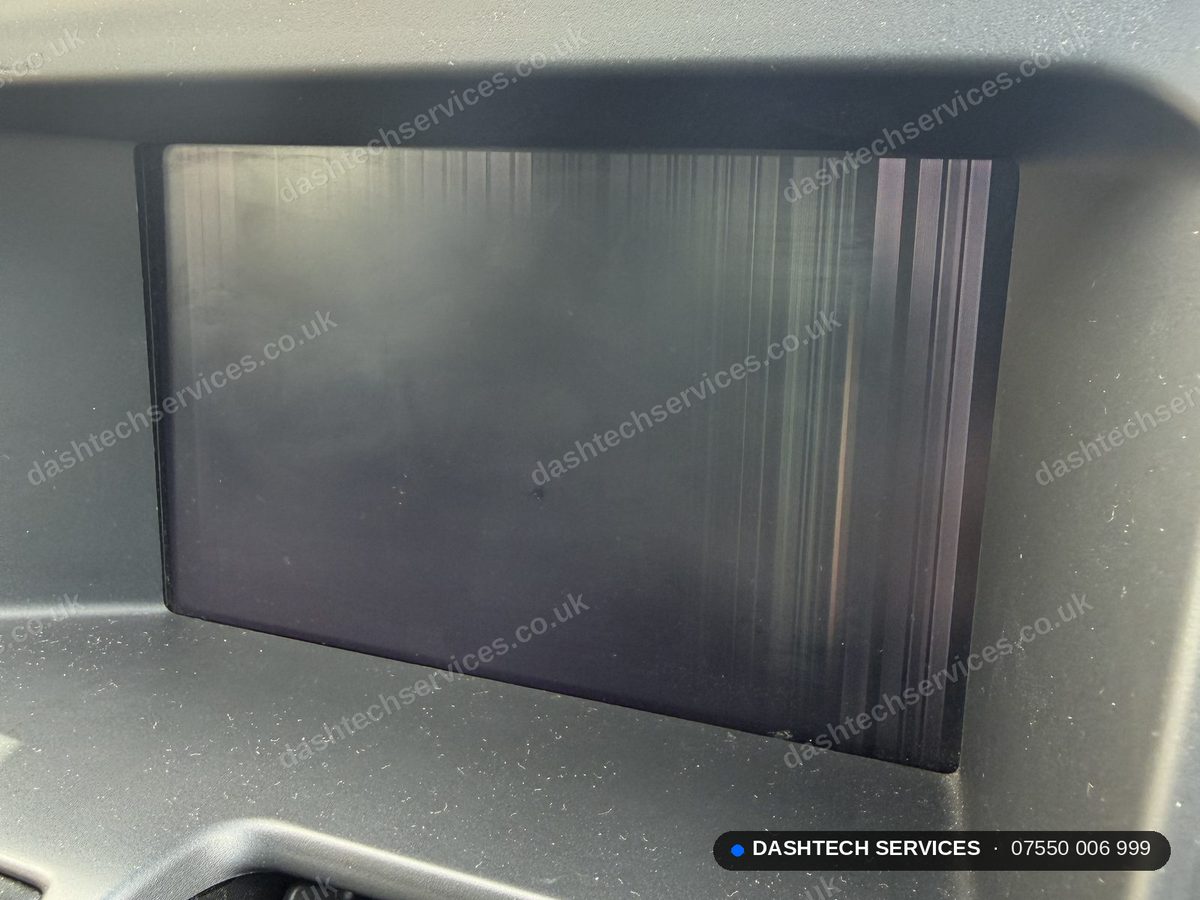

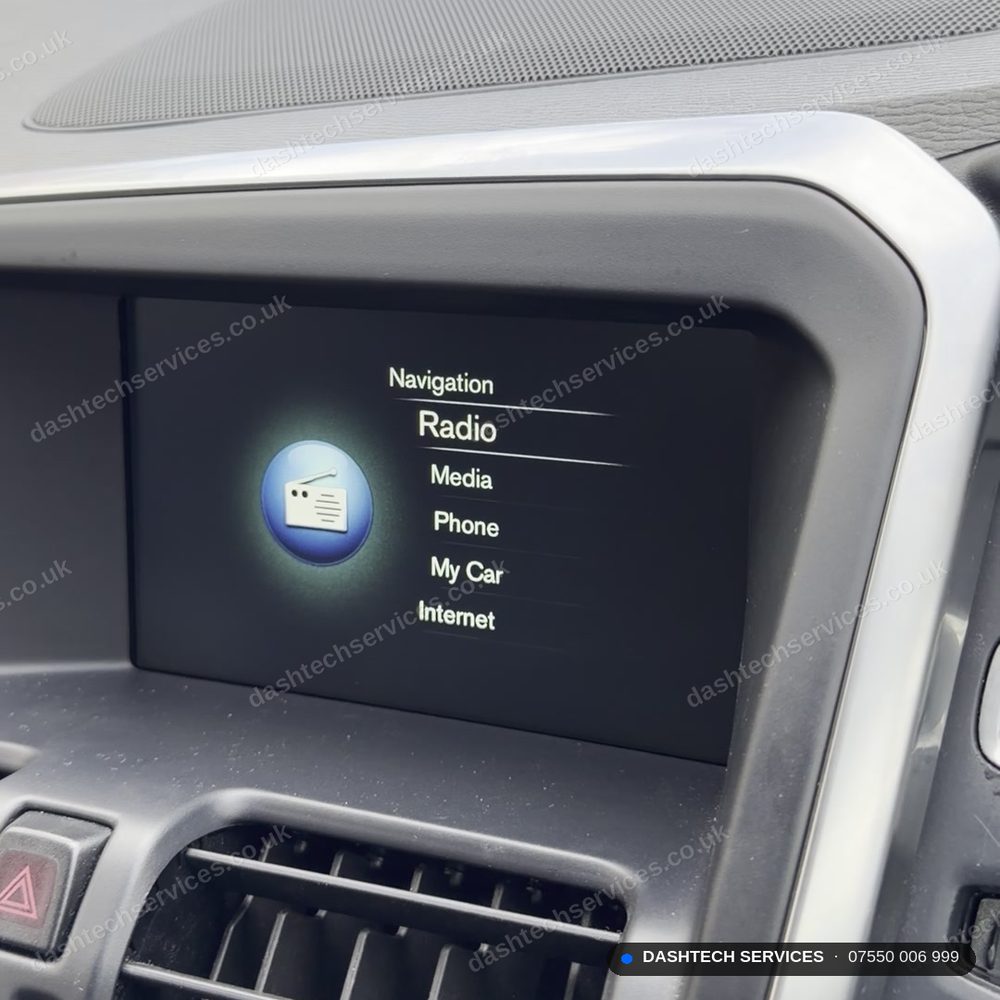

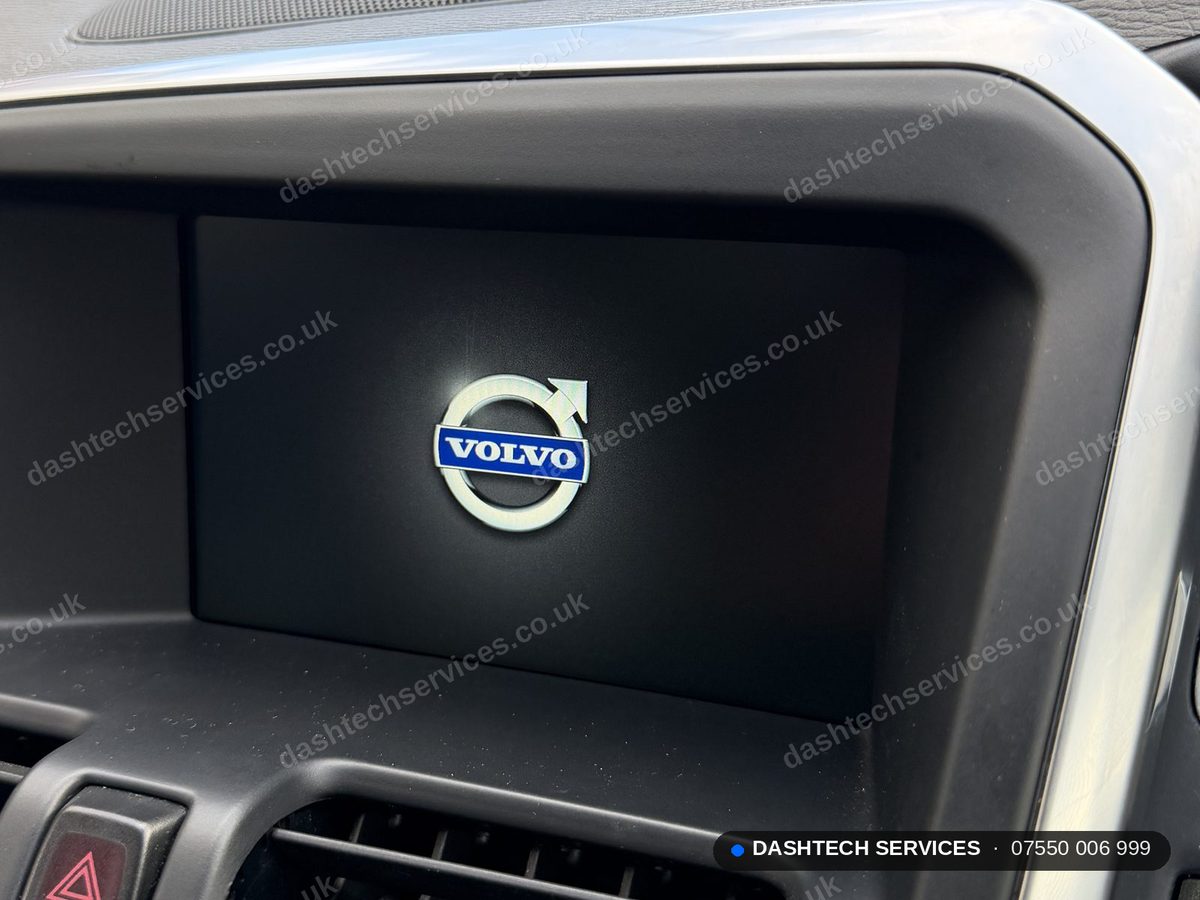

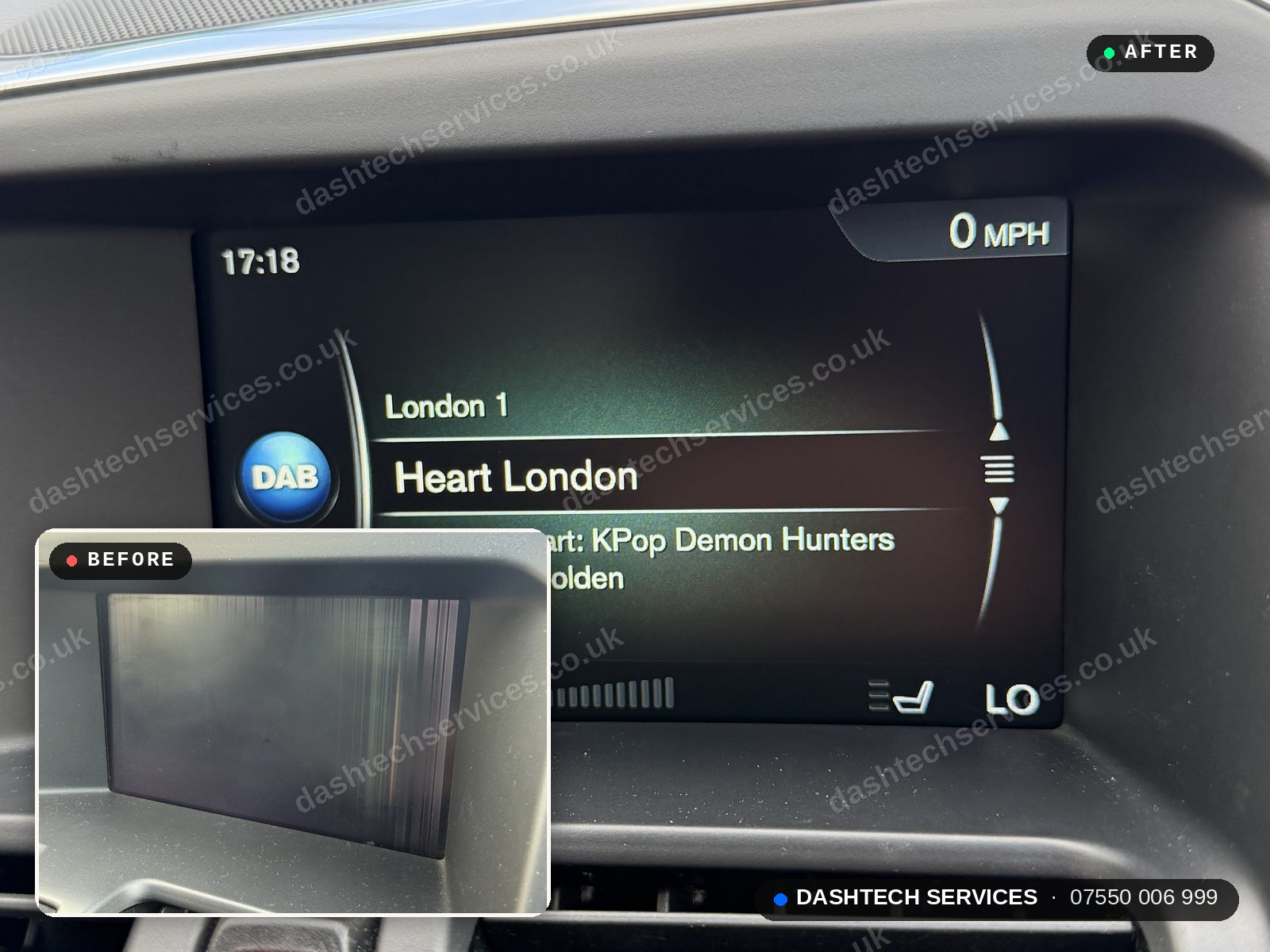

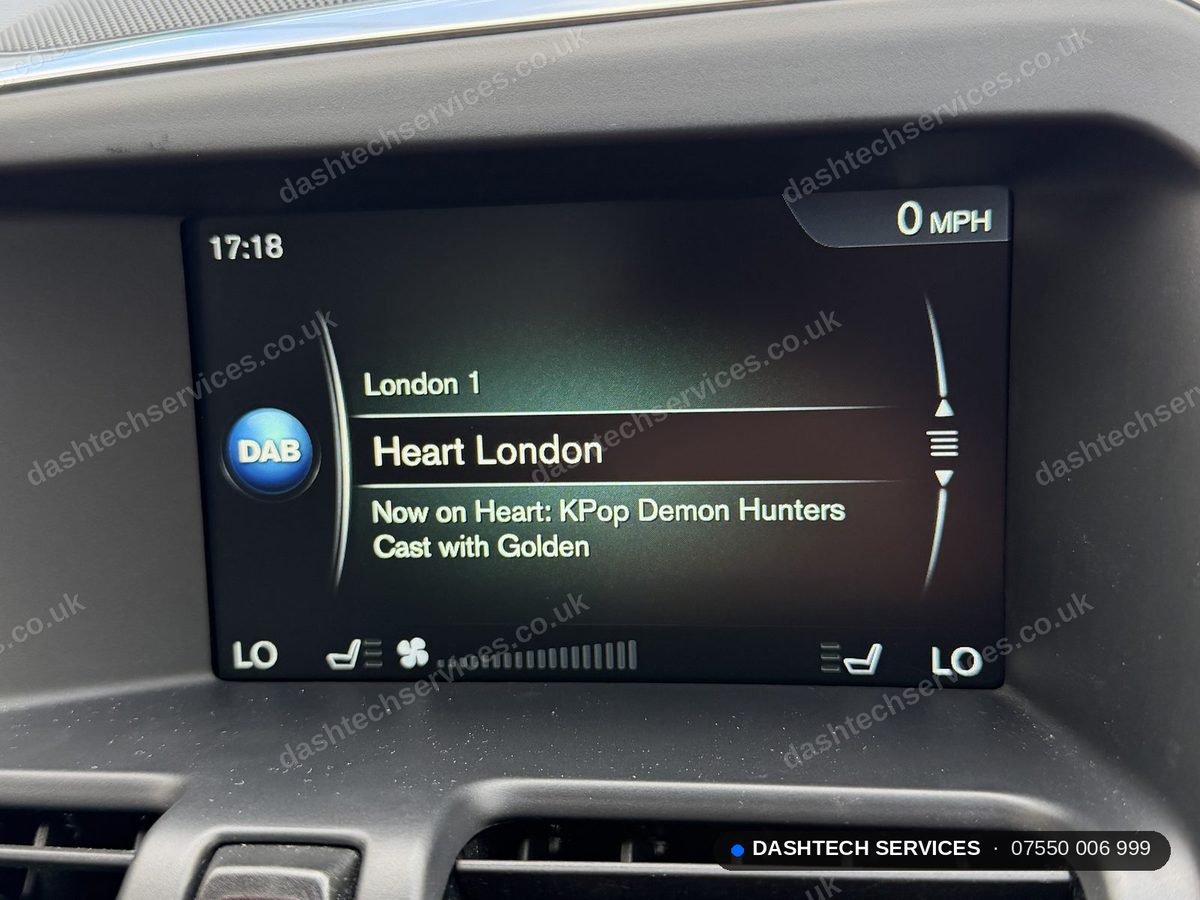

A recent job on a last-of-the-line first-generation XC60 — the 7-inch Sensus Connect display shared with the S60, V60, V40, V70, XC70 and S80 of the same era. Vertical lines and a washed-out picture had left the owner with no usable screen. These are our own photos from the driveway.
Most screen repairers ask you to remove the unit yourself and post it off, then wait a week or more with no screen and no radio. We come to you, fit the new screen, code it and test it — same visit — and you pay on completion.
